環形電阻片

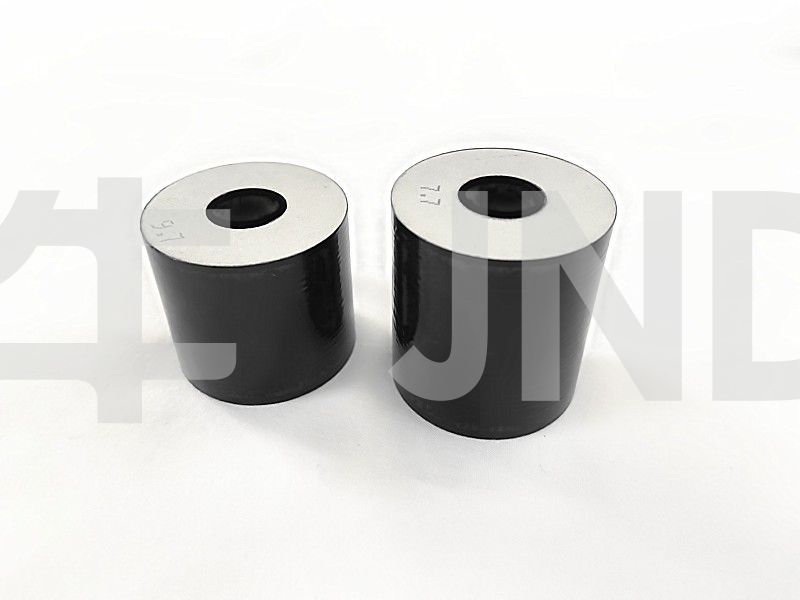

小直徑環形電阻片
產品描述
| Specification規格 | Diameter直徑 | Thickness高度 | D.C. reference voltage (U1mA)參考電壓 | Leakage current under 75%U1mA 漏流 | Max. ratio of residual voltage (8/20us)壓比 | Current impulse withstand capability | Recommended rated voltage額定電壓 | Recommended continuous operating voltage持續運行電壓 | |
| 4/10us 大電流 | 2ms方波 | ||||||||
| mm | mm | kV | uA | at 5kA | kA | A | kV | kV | |
| Used for 10kA power station/ substation of class 4, IEC | |||||||||
| Specification | Diameter | Thickness | D.C. reference voltage (U1mA) | Leakage current under 75%U1mA | Max. ratio of residual voltage (8/20us) | Current impulse withstand capability | Recommended rated voltage | Recommended continuous operating voltage | |
| 4/10us | 2ms | ||||||||
| mm | mm | kV | uA | at 10kA | kA | A | kV | kV | |
| 52/32x24 | 52/32±0.5 | 24±0.5 | 5.0-5.8 | <15 | 1.84 | 65 | 300 | 3.6 | 2.88 |
| 56/24x24 | 56/24±0.5 | 24±0.5 | 5.0-5.8 | <15 | 1.8 | 100 | 350 | 3.6 | 2.88 |
| 61/32x30 | 61/32±0.5 | 30±0.5 | 6.2-7.0 | <15 | 1.77 | 100 | 400 | 4.5 | 3.6 |
| MOV115/42x22.5 | 115/42±0.5 | 22.5±0.5 | 4.5-5.1 | <30 | 1.59 | 100 | 2000 | 3 | 2.4 |
產品特點：
2臺噴霧造粒機
40米國內最長窯爐
認證:Iso9001&14001&CQC等
細致全鋁面電極
超強過電壓和大電流耐受能力
泄漏電流小(持續運行電壓下)
優質非線性特性
遵循GB/IEC/IEEE等標準
電阻片可靈活串連
電阻片100%全面老化
